Metering Pumps
Exakta prides itself on developing its own process and metering pump designs for both diaphragm and plunger types, according to the most demanding international standards and customers’ specifications.
The range of products extends across a wide variety of industries and applications where heavy duty, accuracy and reliability are mandatory.
Our pumps are fully tested using our own internally constructed test benches, ensuring the most stringent tests possible.
DELIVERING A RANGE THAT COVERS A WIDE RANGE OF PERFORMANCES.
Flow Rate : up to 10,000 l/h with a single head Capacity Range : up to 65,000 l/h, up to 1150 bar Flow rate : up to 660 l/h Head Size: A Pressure: up to 20 bar (higher upon request)

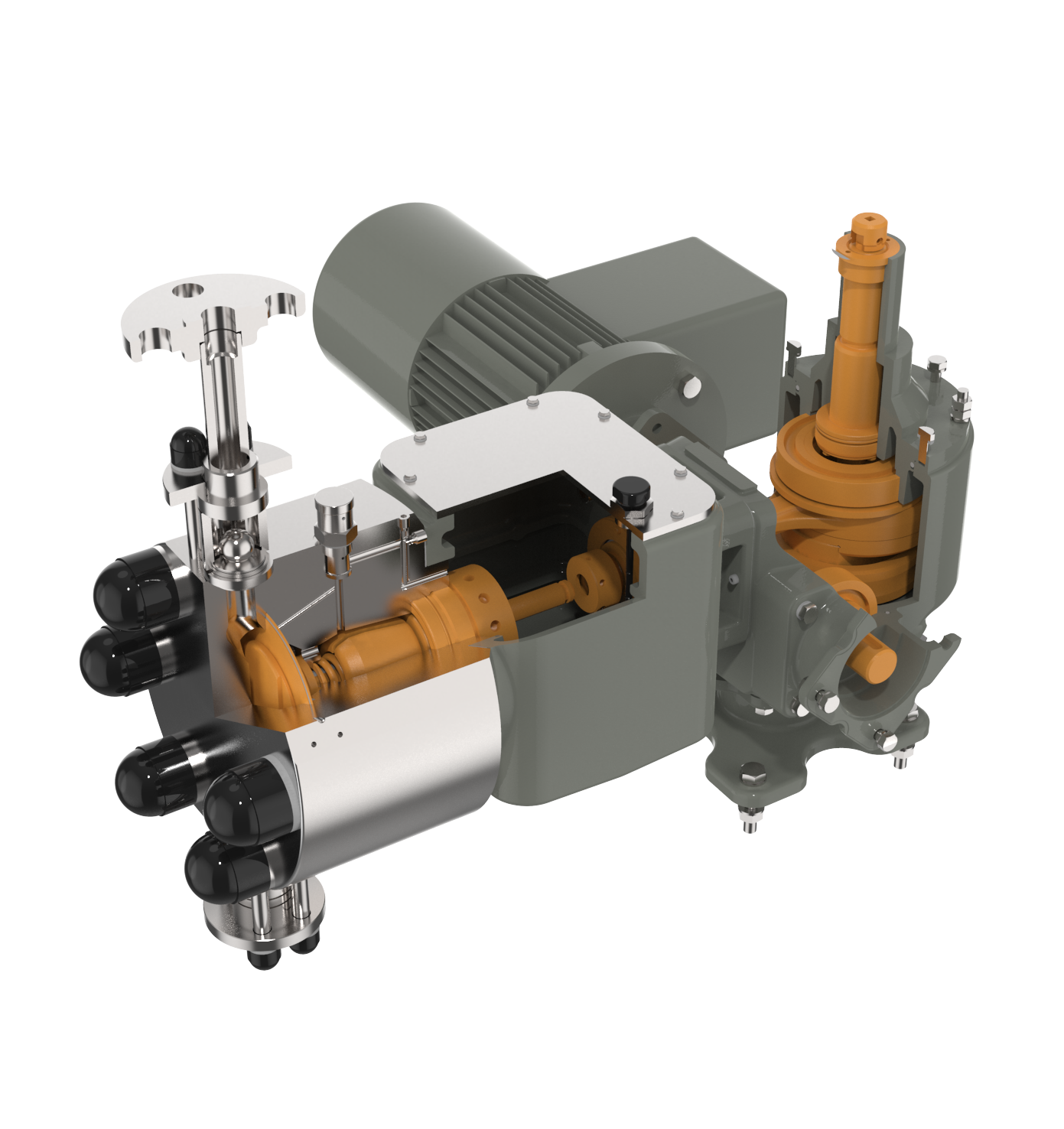

Double-diaphragm and packed plunger pumps with full-motion mechanisms
Fluid Temperature: from -20°C to 80°C (from -40°C to 150°C on request)
Pressure: -up to 600 barg for hydraulic diaphragm and 650 for packed plunger
Wetter Parts: SS 316L, PP, PVDF and PTFE (exotic alloys available on request)
Click for more info.
3C Triplex Pumps Series
Wetted Parts: SS 316 L, LTCS, Super Duplex, different material (on request)
Flow rate adjustment: -by frequency converter
Compliance: with international standard approvals as API 674, ASME, TR CU 012/2011
Click for more info.
Nyva Series
Pressure: up to 124 bar
Material of pump head: -SS 316L, PP, PVDF and PVC-U
Stroke length: 10 to 25 mm
Diaphragm diameter: 12/ 15/ 20/ 30/ 35/ 40/ 50 mm
Motor: 0.18/ 0.25/ 0.75/ 1.1/ 1.5 kW
Click for more info.
Nexa XP Series
Max. Flow Rate [l/h]: 11,3
Fluid Temperature [°C] : -20 / 150
NPIPr [barg]:-0,6
Suction Pressure [barg]: -200
Click for more info.
Radix Series
Flow rate: up to 1000 l/h
Mechanical diaphragm : -PTFE
Diaphragm:-available as standard in SS 316 or ceramic
Wetted parts: -SS 316L, PVC, PP and PVDF
Click for more info.
